DIN376 Machine Tap
Features :
– Standard : DIN 376
– Flute : Straight Flute , Sprial Flute , Sprial Point
– Thread Type : M (MF, UNC, UNF, BSW, BSP are Available)
– Process : Fully Ground
– Material : HSS M2, HSS Co
– Improve the efficiency of processing thread, a necessary tool for hand tapping operation
– The straight flute is the standard style of tap, designed for a range of different tapping applications
Applications :
– Ideal for rethreading fasteners and fastener holes for auto and machinery repair
– For Steel Aluminium Brass External Thread Tapping
-
Tap & Die Set
-
DIN223 Die
Features :
– Standard : DIN223
– Round or Hex
– Material : Alloy steel , 9SiCR , HSS
– Process : Fully Ground
– Used to cut or clean an external thread
– Best used with a three screw die stock which aids in the alignment when repairing threads
– Hex rethreading dies are used in repair of rusty and/or damaged threads
– The chips are discharged through the plane holes in round dies
-
NPT Tap ( Taper Pipe )
Features :
– Standard : NPT Tap ( Taper Pipe )
– Process : Fully Ground
– Material : Alloy steel , 9SiCR , HSS , HSS Co
– Improve the efficiency of processing thread, a necessary tool for hand tapping operation
– The straight flute is the standard style of tap, designed for a range of different tapping applications
Applications :
– Ideal for rethreading fasteners and fastener holes for auto and machinery repair
– For Steel Aluminium Brass External Thread Tapping
-
DIN2181 Hand Tap 2pcs Set
Features :
– Standard : DIN2181
– Taper Plug taps
– Process : Fully Ground
– Material : Alloy steel , 9SiCR , HSS , HSS Co
– Improve the efficiency of processing thread, a necessary tool for hand tapping operation
– The straight flute is the standard style of tap, designed for a range of different tapping applications
Applications :
– Ideal for rethreading fasteners and fastener holes for auto and machinery repair
– For Steel Aluminium Brass External Thread Tapping
-
DIN1814 Tap Wrench
Features :
– Standard : DIN1814
– Material : Alloly Steel
– Size: 1# to 7#
– Adjustable jaws easy and firmly clamp the tools
– Straight handle design provides greater leverage, especially when using larger diameter taps
– Made from die-casting body with a steel handle
Applications :
– Designed for use with taps, reamers, screw extractors and other tools
-
DIN225 Die Stock
Features :
– Standard : DIN1814
– Material : Alloly Steel
– Size: 16×5 to 105×22
– Die holders are used for securely holding round dies for the clean cutting of external threads
– The body and ends are black powder coated, with each end knurled for a comfortable non-slip grip
– A die stock is used in conjunction with a die to create external (male) threads, usually on plain rods, for nuts to fasten onto
– This three screw-type die stock handle is perfect for round adjustable dies of any construction, and is specially designed to hold dies with open type adjustments
-
DIN5157 G (Pipe Thread) Tap 2pcs Set
Features :
– Standard : DIN5157 Pipe Thread
– Process : Fully Ground
– Material : Alloy steel , 9SiCR , HSS , HSS Co
– Improve the efficiency of processing thread, a necessary tool for hand tapping operation
– The straight flute is the standard style of tap, designed for a range of different tapping applications
Applications :
– Ideal for rethreading fasteners and fastener holes for auto and machinery repair
– For Steel Aluminium Brass External Thread Tapping
-

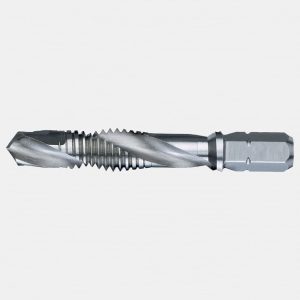

Hex Shank Combinated Tap
Features :
– Material : HSS , HSS-E
– Process : Fully Ground
– Hex shank : R or V groove
– Complete hole drilling, tapping, deburring and countersinking in one operation with power drill
– Self-centering point, do not need assistant center drilling or center punching
– Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools
– Modified bottoming chamfer has additional length to reduce chip load, add tool life
– High-speed steel tools are good for most general purpose applications, offering a combination of hardness and
toughness for wear resistance
Applications :
– Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron, etc.
-
T Handle Tap Wrench with Ratchet
Features :
– Material : Alloy Steel
– Size: #1, #2, #10, #20
– All-steel design with chromium-plated finish for the highest durability
– Beautifully precise ratcheting action for high quality work
– Adjustable T-Handle can be “slipped” from side to side for positioning convenience and added leverage in tight places
– Easily switched from left to right handed operation, or locked for non-ratcheting use
– Parallel-clamping tool steel jaws and knurled chuck provide a secure, firm grip on hex or square drives
– Designed for using with taps and can also use on the left hand tap, reamers, screw extractors and other tools with a square shank
